In an organic synthesis lab, few moments are as devastating as this: you’ve just completed a grueling 8-hour synthesis, and your precious product is sitting safely in the collection flask. However, the moment you kill the heat, you watch in horror as the distillate—driven by an invisible force—races backward through the condenser and crashes into the crude residue. Weeks of labor, dissolved in three seconds.
⚠️ Quick Fix: If you are in the middle of a shutdown, remember the golden sequence: Vent first, Stop pump second, Kill heat last. Never bypass the atmosphere.
This phenomenon is Suck-back. As a glassblower and synthesis specialist, I’ve seen expensive catalysts and pure products destroyed by this “reverse magic.” Investing in a Laboy Anti-Splash Adapter is a fraction of the cost of losing a month’s worth of synthesis. Today, we’ll build a “Pressure Firewall” into your glass assembly to ensure Rotary Evaporator Safety.
| Lab Scenario | The Physical Trigger (Vapor Collapse) | Mechanical Consequence |
|---|---|---|
| Post-Heat Cooling | Sudden drop in $T$ leads to a rapid $P$ drop. | External fluids are “inhaled” into the reaction flask. |
| Vacuum Termination | Stopping the pump before venting. | Pump oil or waste liquid is pushed toward the reaction center. |
| Gas Scrubbing | High solubility of gas (e.g., HCl) in the liquid. | Instant pressure void triggers a massive back-flow. |
The Physics of Vapor Collapse: Why Suction Happens
The suction generated during cooling is a direct consequence of Boyle’s Law. When heating, solvent vapors occupy the majority of the flask’s volume. Think of it as a “pressure balloon” keeping the outside world at bay. The moment the heat source is removed, these vapors condense into tiny droplets, creating a physical vacuum void.
According to $$PV=nRT$$, when temperature ($T$) plummets and the number of gas moles ($n$) vanishes due to liquefaction, the internal pressure ($P$) experiences a cliff-like drop. Because fluids always move toward lower pressure, the atmosphere will relentlessly push any external liquid—be it scrubbing solution or distillate—back into your flask.
🛡️The ChemNorth “Three-Step” Safety Rule
Building the “Hardware Firewall”
Relying on memory is a risk; relying on glass is a strategy. To automate your defense, use these two essential components:
1. The Distillation Trap (Safety Trap): Placing a Laboy safety trap between the reactor and the vacuum source is the gold standard. In the event of suck-back, the liquid fills the trap instead of the reactor. Remember the “long-in, short-out” rule for maximum containment.
2. Anti-Splash Adapters: If space is tight, an Anti-Splash Adapter with a large bulb acts as a buffer. The bulb’s geometry neutralizes the kinetic energy of back-flowing liquid before it reaches your product.

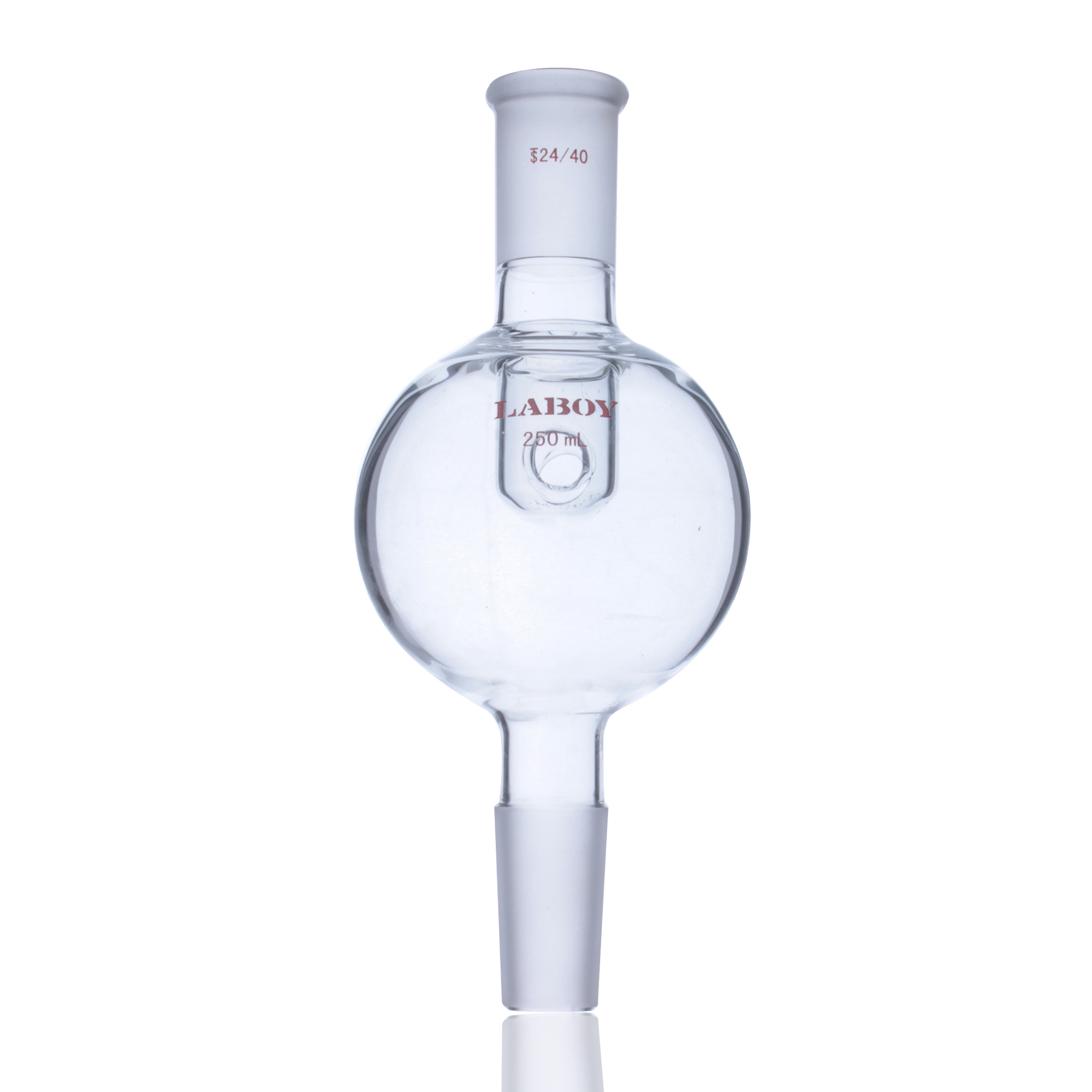

The bulbous geometry of an anti-splash trap provides the necessary volume to neutralize suck-back kinetic energy.
Conclusion: The Soul of the Apparatus
Suck-back is not an “uncontrollable accident”—it is a physical penalty for a careless shutdown sequence. By mastering pressure management and utilizing high-quality glassware like Laboy safety traps, you protect the integrity of your hard-won results.
